Description

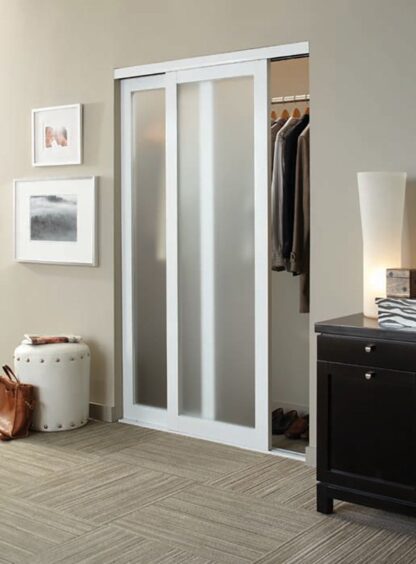

Anodized 3″ wide aluminum side mold and 3 1/2″ wide top and bottom mold, hollow tube design, Mystique™ Duratuf® tempered safety glass with color coordinated glazing vinyl and aluminum Ultraglide® track and channel
• 3mm Mystique™ Duratuf® tempered safety glass
• Heavy-duty commercial quality anodized aluminum frame
• 3” wide side rail
• 3 1/2” wide top and bottom rail
• Aluminum track and channel
• Ultraglide® 2 1/4” deep felt-lined top channel
• Bottom rolled with jump-proof track
• Top channel and bottom track with finish to match
• 1 1/2” diameter wheels with hardened steel races and 5/32 ” ball bearings in extra-heavy 18 gauge steel housing
• Heavy gauge 6063 extrusions (6463 is polished for bright colors)
• Side rails are hollow extrusions (tubular) for added strength
• Color coordinated glazing vinyl
• Standard sizes
» Width: 48”, 60”, 72”, 84”, 96”, 108”, 120”, 144”, 168” and 192”
» Height: 81” and 96”
• Custom sizes
» Maximum individual panel width is 60”
» Maximum opening height is 120”
• Adjustment range for opening height is up or down 1/2”
|
|
 |
 |
|
